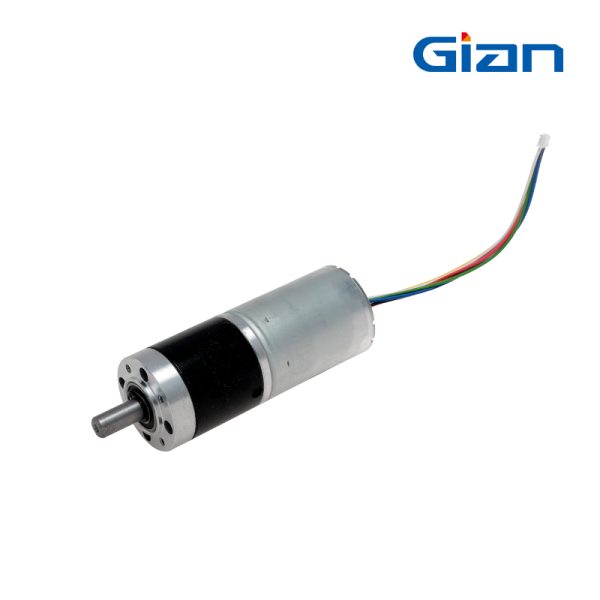

Gian TR075-P07 Planetary Gear Motor( Brushless, 12V, 1.176N.m)
Product Catalogues
Gian TR075-P07 Planetary Gear Motor( Brushless, 12V, 1.176N.m)
- Rated Current: 0.85A, ensuring efficient power consumption and performance.
- Rated Moment: 1.176 N.m, providing powerful and consistent output for high-performance applications.
- Typical Applications: BLDC gearbox for the robot.
Product Detail
Performance Parameters
| Model | Rated Voltage | Rated Speed | Rated Moment | Rated Current | Noise |
| TR075-P07 | 12V | 40±15%RPM | 1.176N.m | 0.85A | ≤55dB(Horizontal distance 1m) |

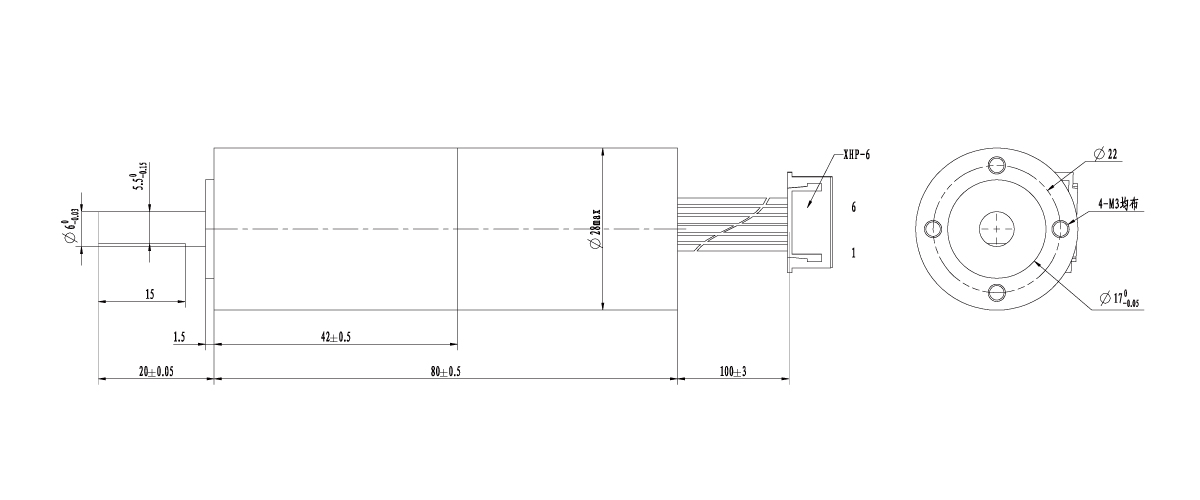

Mechanical Dimensions: mm
