In the realm of motion control, servo motors are crucial components for ensuring precise and efficient operation in various industrial applications. Among the different types of servo motors, Hollow Shaft Servo Motors and Dual Shaft Servo Motors are popular choices for tasks that require high levels of performance.

This article explores the key features, advantages, and applications of hollow shaft and dual shaft servo motors, and compares them based on several important parameters such as construction, application, torque delivery, and flexibility.

What is a Hollow Shaft Servo Motor?

A hollow shaft servo motor is a type of motor where the shaft is hollow at its core, allowing other components to pass through the center of the motor. This design provides a compact and flexible solution for applications where space is limited, or where additional components such as cables or hoses need to be routed through the center of the motor.

Key Features of Hollow Shaft Servo Motors

• Hollow Center: The main feature of hollow shaft motors is the empty center of the shaft, which allows for cables, tubes, or other mechanical systems to pass through.
• Compact Design: These motors are typically smaller and more compact, making them ideal for applications where space is at a premium.
• Simplified Integration: The hollow shaft design eliminates the need for additional bearings, couplings, or other components that would be required for motors with solid shafts.
• Reduced Noise and Vibration: Hollow shaft designs can reduce mechanical noise and vibrations in high-precision applications.

Applications of Hollow Shaft Servo Motors

Applications requiring high precision and space efficiency usually utilize hollow shaft servo motors. Some common applications include:

• Medical Equipment: The hollow shaft allows for the passage of cables or tubing, essential in machines like MRI or ultrasound equipment.
• Robotics: Robots and automated arms often use hollow shaft motors to save space and increase flexibility.
• CNC Machines: These motors are commonly found in CNC machines, where precision and compact integration are critical.
• Packaging Machines: Hollow shaft motors are used in automated packaging systems where space and flexibility for cable management are crucial.

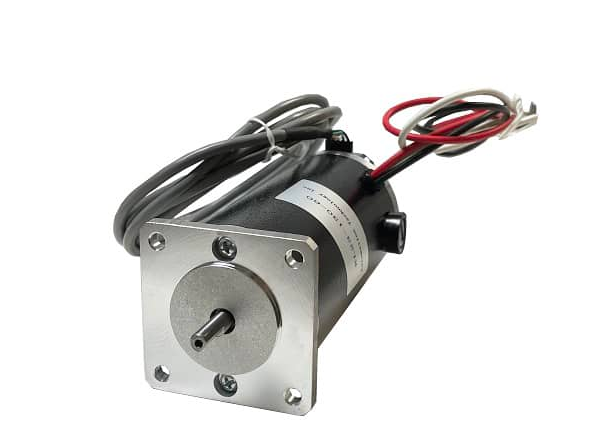

What is a Dual Shaft Servo Motor?

A dual shaft servo motor is a type of motor that features two shafts: one at the front and one at the rear. This design allows the motor to provide output power from both ends, providing added flexibility in connecting mechanical loads or external equipment.

Key Features of Dual Shaft Servo Motors

• Two Output Shafts: The defining feature of a dual shaft motor is the presence of two output shafts, which enables the motor to drive two different mechanical systems or components simultaneously.
• Versatility: Dual shaft motors offer great versatility as they can be coupled to two separate devices or systems, such as a conveyor system with two moving parts or a robotic arm with two independently controlled joints.
• Compact and Balanced Design: The design of dual shaft motors often allows them to be more compact and well-balanced compared to motors that have a single shaft or are offset in a way that might lead to vibrations.
• Reduced Complexity in Transmission: Because the motor is equipped with two shafts, it eliminates the need for additional mechanical transmission components, simplifying the overall design of the system.

Applications of Dual Shaft Servo Motors

Dual shaft servo motors are widely used in applications where two motion outputs are needed from a single motor. Some common applications include:

• Robotic Arms: Dual shaft motors are often used in robotic arms that require two independent outputs to control different movements simultaneously.
• Conveyor Systems: In conveyor systems with multiple moving parts, dual shaft motors can drive both ends of the conveyor, making the system more efficient.
• Automated Machinery: In industries where precision is key, such as food processing, packaging, and pharmaceutical manufacturing, dual shaft motors can be used to control different elements of the machine.

Key Differences Between Hollow Shaft and Dual Shaft Servo Motors

To better understand the distinctions between hollow shaft and dual shaft servo motors, let’s compare them on several important factors, such as construction, flexibility, torque delivery, space requirements, and applications.

Construction

Feature	Hollow Shaft Servo Motor	Dual Shaft Servo Motor
Shaft Type	Hollow shaft with a central opening	Two shafts – one at the front and one at the rear
Design	Compact design with an open center	Dual output design with shafts at both ends
Space Efficiency	High – allows for cable routing through the shaft	Moderate – requires space for both shafts

Hollow shaft motors have an empty center, while dual shaft motors are designed with two output shafts. The hollow shaft design allows more flexibility when it comes to routing cables or mechanical parts through the motor, while dual shaft motors provide increased versatility in driving multiple components.

Flexibility

Feature	Hollow Shaft Servo Motor	Dual Shaft Servo Motor
Integration	Excellent for tight spaces and compact applications	Ideal for applications requiring two simultaneous outputs
Routing Ability	Can pass cables, tubes, or mechanical components	Provides two output connections for different drives

Applications requiring space constraints or the requirement to pass extra parts through the motor’s shaft, like cables or hoses, are best suited for hollow shaft motors. Dual shaft motors, on the other hand, offer flexibility in driving multiple parts or components with independent movements, without the need for additional transmission mechanisms.

Torque Delivery

Feature	Hollow Shaft Servo Motor	Dual Shaft Servo Motor
Torque Distribution	Delivers torque from a single shaft	Delivers torque from two shafts simultaneously
Mechanical Load	Best suited for applications with a single load	Ideal for applications that require multiple load connections

While both types of motors can deliver high torque, the dual shaft design can be advantageous for applications requiring torque distribution across two components. In contrast, hollow shaft motors typically provide torque through a single output shaft, making them better suited for tasks with a single mechanical load.

Applications

Feature	Hollow Shaft Servo Motor	Dual Shaft Servo Motor
Ideal Applications	Robotics, CNC, packaging, medical devices	Robotics, conveyor systems, automated machinery
Space Considerations	Excellent for space-limited applications	Suitable for applications needing dual outputs

Both motors excel in different applications. Hollow shaft motors are typically favored in medical, robotic, and industrial settings where space is critical. Dual shaft motors are better for systems requiring multiple outputs from a single motor, such as robotic arms or conveyors with independent moving parts.

Which One to Choose: Hollow Shaft vs Dual Shaft Servo Motor?

The decision to choose a hollow shaft or dual shaft servo motor depends largely on the specific requirements of the application. Here are a few considerations:

Choose a Hollow Shaft Servo Motor if:

Space efficiency and flexibility for routing cables or tubes are critical.
The application involves complex machinery where the motor needs to integrate into tight spaces, such as in medical equipment or automated systems.
You require a compact motor that allows for simple integration into compact spaces.

Choose a Dual Shaft Servo Motor if:

The system requires two independent outputs to control multiple elements or components simultaneously.
You need to reduce the complexity of transmission systems by using a single motor to drive multiple parts.
Your application involves robotics or machinery that requires two active moving parts, such as a robotic arm or multi-axis control system.

Conclusion

Both hollow shaft and dual shaft servo motors offer unique benefits, and selecting the right motor depends on the specific needs of your application. Hollow shaft motors are ideal for space-constrained environments and offer excellent flexibility for routing cables and components. In contrast, dual shaft motors provide flexibility for controlling multiple systems simultaneously, making them highly useful in robotics and automated machinery applications.

For businesses working with high-performance servo systems, understanding these differences is crucial in optimizing your machinery for efficiency, precision, and reliability. Whether you are a servo motor manufacturer or looking to integrate these motors into your design, choosing the right type of motor will enhance performance and reduce system complexity.
