Stepper motors are known for their precision, reliability, and ease of control, making them essential components in a wide range of applications. However, in environments where moisture, dust, and other contaminants are present, standard stepper motors can fail, leading to costly downtime and maintenance.
This is where waterproof stepper motors come into play. In this comprehensive guide, we will explore the structure of waterproof stepper motors, their waterproofing mechanisms, the materials used in their construction, and their various applications.

Structure of Waterproof Stepper Motor

A waterproof stepper motor is designed with several key components that work together to provide reliable performance in challenging environments. Understanding these components is crucial to appreciating the motor’s robustness and precision.

  • Enclosure
  • Seals and Gaskets
  • Bearings
  • Encapsulated Electronics
  • Vents

Enclosure: The casing of the motor is made to keep dust, water, and other impurities away from the internal parts. Usually, premium materials that are corrosion-resistant and durable are used to make it.

Seals and Gaskets: To ensure the motor is watertight, seals and gaskets are used at all entry points, including the shaft and cable entries. The motor housing cannot be penetrated by water or dust thanks to these seals.

Bearings: The bearings used in waterproof stepper motors are often sealed or shielded to protect them from moisture and contaminants. This ensures smooth and reliable operation over the motor’s lifespan.

Encapsulated Electronics: The motor’s electronics, including the stator windings and rotor, are often encapsulated in a protective coating. This encapsulation prevents moisture from damaging the motor’s internal circuitry.

Vents: Some waterproof stepper motors include special vents that allow pressure equalization without letting water or dust enter the motor. These vents are critical in maintaining the motor’s integrity under varying environmental conditions.

The part of waterproof motor

The waterproofing of stepper motors involves several critical parts and techniques that ensure the motor remains operational in wet and dusty environments. Let’s delve into the key waterproofing elements:

  • IP Rating
  • Sealed Housing
  • Coated Windings
  • Stainless Steel Shafts
  • Waterproof Connectors

IP Rating: The Ingress Protection (IP) code, which categorizes the level of protection offered by the motor’s enclosure, is used to assess waterproof stepper motors. Common ratings for waterproof stepper motors include IP65, IP66, and IP67. These ratings indicate the motor’s ability to resist water jets, heavy seas, and temporary immersion, respectively.

Sealed Housing: The motor housing is sealed using O-rings and gaskets made from high-quality materials such as silicone or rubber. These seals are crucial in preventing water ingress at the joints and connection points.

Coated Windings: The motor windings are often coated with a protective varnish or epoxy that provides an additional layer of protection against moisture and corrosion. This coating guarantees that even under severe circumstances, the windings stay insulated and operational.

Stainless Steel Shafts: The shafts of waterproof stepper motors are typically made from stainless steel, which offers excellent resistance to corrosion and wear. This is especially important in marine and industrial applications where exposure to saltwater and chemicals is common.

Waterproof Connectors: The electrical connectors used in waterproof stepper motors are designed to prevent water ingress. These connectors are often molded with waterproof materials and include additional sealing mechanisms to ensure a secure and watertight connection.

Material of waterproof motor

The materials utilized in the manufacture of waterproof stepper motors have a major impact on both their longevity and performance.

Here, we highlight the key materials and their importance:

  • Stainless Steel
  • Aluminum Alloy
  • Silicone and Rubber
  • Epoxy Resin
  • High-Performance Plastics

Stainless Steel: Known for its strength, resilience, and corrosion resistance, is ideal for motor shafts and fasteners in maritime and chemical environments.

Aluminum Alloy: The motor housing is often made from aluminum alloy, which provides a good balance of strength, weight, and corrosion resistance. Furthermore, because aluminum is a powerful heat conductor, heat generated by the engine is dispersed.

Silicone and Rubber: These materials’ flexibility, toughness, and resilience to a variety of chemicals and temperatures make them ideal for use as gaskets and seals. They ensure a tight seal around the motor’s joints and connection points.

Epoxy Resin: Epoxy resin is used to coat the motor windings and other electronic components. This material provides excellent insulation, moisture resistance, and mechanical protection, ensuring the motor’s internal components remain functional in harsh conditions.

High-Performance Plastics: Plastics such as polycarbonate or nylon are used for some internal components due to their strength, durability, and resistance to moisture and chemicals.

Application of Waterproof Stepper Motor

Waterproof stepper motors are used in a variety of applications where exposure to moisture, dust, and other contaminants is a concern. Here are some of the key applications:

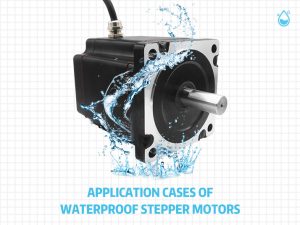

Waterproof Stepper Motors

Marine Equipment: Waterproof stepper motors are essential in marine environments where equipment is exposed to saltwater, humidity, and varying weather conditions. They are used in winches, pumps, and navigation systems.

Food and Beverage Industry: In the food and beverage industry, equipment must be regularly washed down and sanitized, making waterproof stepper motors ideal for conveyor belts, packaging machines, and filling systems.

Outdoor Robotics: Outdoor robotic systems, such as agricultural robots and inspection drones, require waterproof stepper motors to operate reliably in rain, mud, and dust.

Industrial Automation: In industrial settings, waterproof stepper motors are used in environments where machinery is exposed to coolant sprays, dust, and other contaminants. They are found in CNC machines, material handling systems, and assembly lines.

Medical Devices: Some medical devices require waterproof stepper motors to ensure they can be sterilized and operate in clean environments. Applications include surgical robots and diagnostic equipment.

Automotive: In the automotive industry, waterproof stepper motors are used in applications such as electric vehicle charging stations, where exposure to the elements is a concern.

Conclusion

Waterproof stepper motors provide the precision, reliability, and durability needed in environments where moisture and contaminants are present. By understanding their structure, waterproofing mechanisms, and the materials used in their construction, we can appreciate their importance in a wide range of applications.

Whether in marine equipment, food processing, outdoor robotics, or industrial automation, waterproof stepper motors ensure seamless and dependable operation in the harshest of conditions.

If you are still not sure which stepper motor you need, you can contact us and we will arrange for an engineer to communicate with you one-on-one to solve your industry problems.
